Sheet Bending

BM x06A

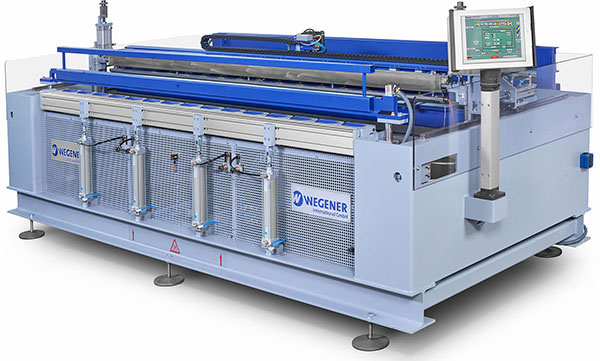

The universal - fully-automatic bending and edging machine for sheet thicknesses from 3 up to 30 mm


  • Microprocessor control and motor feed, for fully automated bending, including:
    – electronic angle adjustment
    – electronic bending line input
    – electronic bending line correction
    – Programming several bends (max. 4 with unequal leg lengths between the bends and up to 12 for bends with equal legs)
    – motorised panel transport
  • Heating and bending times controlled by the PLC
  • Patented hydro-pneumatic bending beam drive that moves the bending beam uniformly, even with altered bending loads.

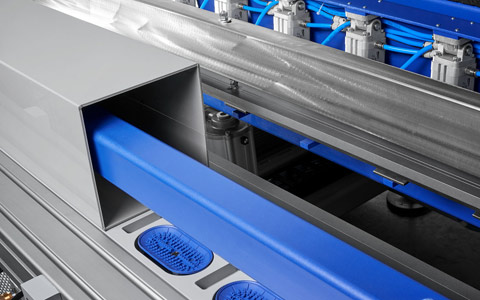

  • Clamping beam that can be unlocked on one side for the easier removal of the closed channels and geometries
  • Upper heated tool v-shaped with optimised flank angle to produce 90° bends in PE-HD and PP
  • Lower heated tool in flat design to heat up the rear of the panel or board
  • Adjustable fusion depth for upper heated tool
  • Holding bar with clamping disks to clamp the panels or boards
  • Infinitely variable, adjustment of the angle from 5° to 95°

Range of Application:

Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, ventilation systems, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics

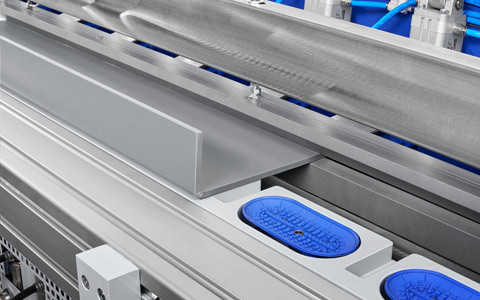

  • Vacuum clamping device (max. material thickness 10 mm) for the smallest of bending legs
  • Remaining clamping length reduction (reduces the remaining clamping length to 85 mm; only available in connection with vacuum clamping device)
  • Milling fixture, automatic and integrated in the overall process, to shorten the pre-heat cycles (requires slight modification of the minimum channel cross-sections and leg lengths)
  • Mobile shavings exhauster for the milling fixture, air swept volume: 430m³/h, dust bin: 50 litres
  • Arrestor small version mounted on clamping beam, as a support for small and medium sized products in steps of 165 mm, 365 mm and 665 mm supporting
  • Arrestor full size version mounted at machine frame; arrestor stepless height adjustable within setting range of 500 mm up to approx. 1.500 mm; suitable for medium sized and full-sized products
  • Signal horn (Acoustical signal at the end or the bending process)
  • Extension arms for bending flange (Optimized support of medium sized or full-sized products during bending 5 pcs.)
  • Contact heated tool 20 x 40 mm, flat, to process PVC, PC, ABS, PMMA
  • Contact heated tool, v-shaped to produce bending angles ≠ 90° e.g. 45° or 60°
  • Software modification, for leg lengths > 1m
  • Carrying beam for upper or/and lower heating element BM 306A (We recommend to have a carrying beam for each heating element used to allow an easy installation and/or exchange)
  • Special energy supply
  • Special paintwork if the RAL colour is specified


Accessories >


Brochure BM x06A

Video BM x06A

Technical Data

BM x06A
Machine Length (mm) 4,300
Machine Width (mm) 2,000
Machine Height (mm) 1,650
Total Weight (kg) 2,500
Max. working width (mm) 3,050
Panel thickness (mm) 3 to 30
Min. bending angle
Max. bending angle 95°
Min. channel cross section
with clamping beam:
Inside dimension 175 x 175 mm
(assumes a square channel with four sides of equal length whose open end is closed by means of a if operated with clamping beam: downstream 90° weld)

Inside Dimension 350 x 350 mm (when bending for welding outside the 4th edge, e.g. butt welds on a WEGENER butt welding machine).

The min. channel cross-sections of the butt welding machine also have to be taken into account.
Min. channel cross-section
when using the vacuum clamping system option and residual clamping length reduction:
Inside Dimension: 85 x 85 mm (remaining clamping length)
Min. remaining clamping length: 175 mm (= remaining clamping length needed to clamp the panels in the machine; standard design)

85 mm with the vacuum clamping system option and residual clamping length reduction
Clamping force (at 8 bars in N): 7,250
Clamping areas: 1
Power Supply: 230/400 V 3/N/PE, 50/60 HZ
Power Consumption (kW) 7.5
Compressed air connection (bar): 8.0
min. Restklemmlänge (mm) 150
Heating Element top
(teflon coated Tmax = 260° C)
40 x 45 mm, 86°
Heating Element bottom
(teflon coated Tmax = 260° C)
20 x 40 mm, blunt
