Extrusion Welding

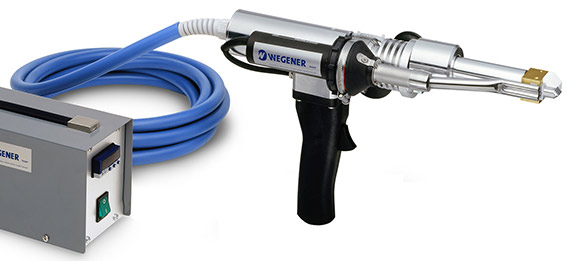

EXWELD mini F-C

Extrusion Welder with self-contained air supply

Features:

  • Basic material pre-heating by special contact welding shoe
  • Only 230 V electrical connection required (also for the option preheater)
  • Gentle extrudate processing by continuous plasticizing process
  • Electronic temperature control
  • Outstanding manageability by low weight and small Dimensions
  • Easy to exchange novel welding shoes, individual configuration available
  • Scope of delivery includes a device support and a welding shoe of your choice

Range of Application:

Manufacture of reservoirs, tanks and containers, manufacturer of plastic apparatus, pipeline construction, ventilation, automotive, roofing, landfill technology

Materials:

suitable for welding PE


Accessories:

Welding Shoes >

Accessories >


Downloads:

Video Extruder

Technical Data Mini-SH-F (cable behind)
Mini-SH-FC (cable below)
Mini-SH-FC (cable below)
Power supply: 230 V 1/N/PE 50/60 Hz
Power consumption: 900 W
Air requirement: self-contained air supply
Heating capacity (air): 250 W + 460 W (preheater)
Welding capacity (PE): approx. 1.5 Ibs/hr
(0.7 kg/hr)
Welding rod diameter:: 19" (Mini SHF)
16.75" (Mini SHF-C)
Weight: approx. 6.6 lbs
(2.9 kg)
Dimensions (L x H x W): 16.1" X 10.6" X 4.7"
(410 x 270 x 120 mm)
